Mule Deer Relief Carving Free Project by Lora Irish

 Working in Levels – Mule Deer Relief Wood Carving Project

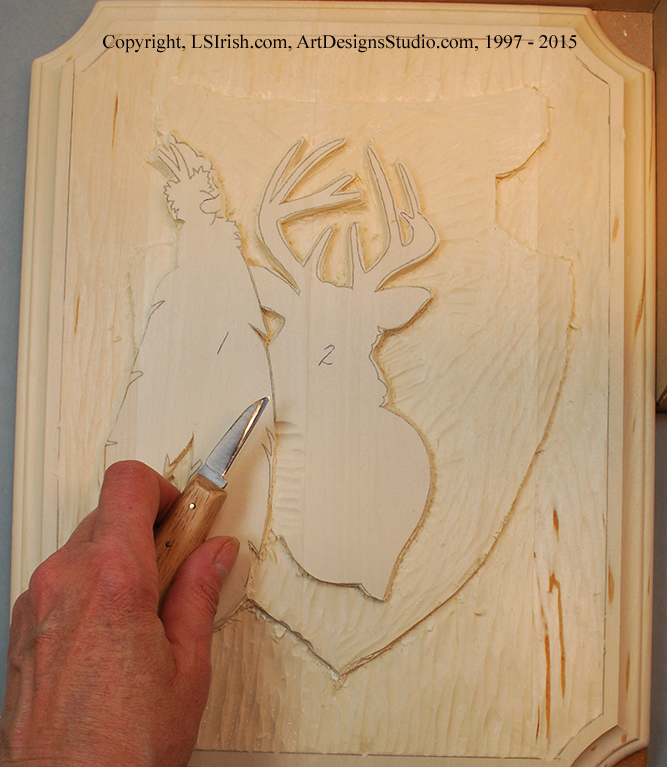

Finding the Levels in a wood carving relief pattern1 The rough out work on level 3 and 2 are worked in the same manner as the background rough out.

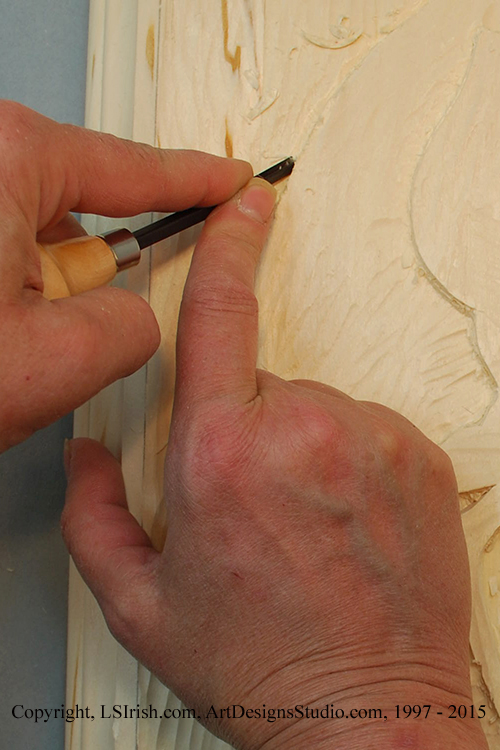

Using a v-gouge in relief wood carving2 As you develop the different levels of a relief carving you can return to lower levels at any time to adjust their depth or to clean up some of the gouge marks. In this photo the v-gouge is used along the edges of two levels to create a clean break line.

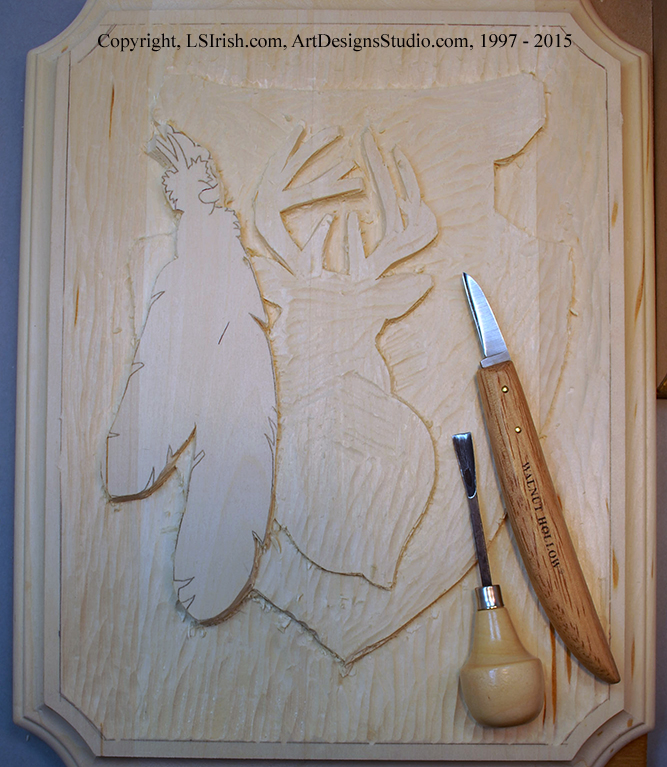

Levels in relief wood carving3 Continue working into level 2, the deer head, for the rough cut steps.

By working the rough cut stage in levels you are grouping areas or elements that all fall at a particular point in the depth of the carving. All of the deer’s features fall behind the feathers, therefore it is easiest to carve the entire deer head as one unit below the level of the feathers.



Smoothing the Levels

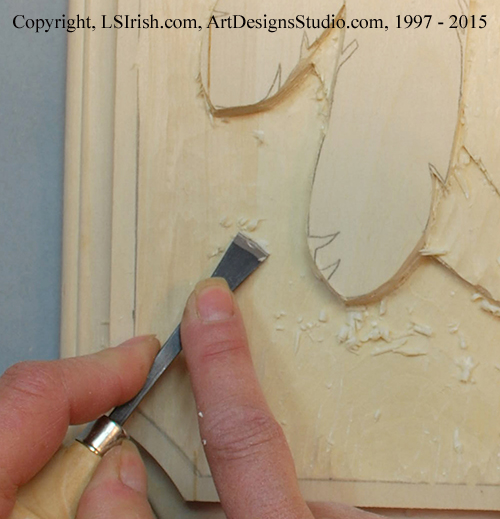

Smoothing the background of a relief wood carving1 Once each level’s rough cut work is complete the high ridges left from the large and small round gouge can be removed with the straight chisel. Drop the straight chisel close to the surface of the wood. The tool’s edge will shave thin slices.

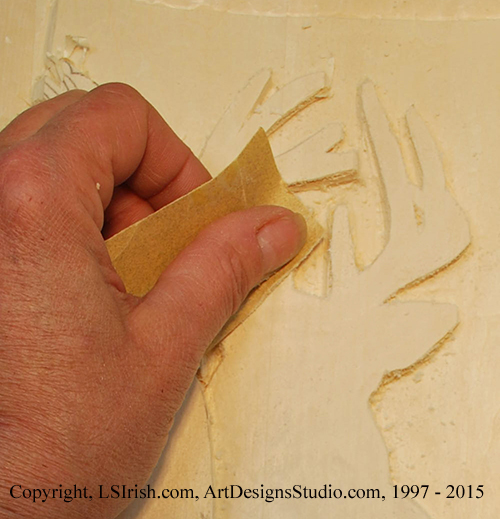

Using sandpaper on a relief wood carving2 Lightly sand the carving using 220-grit sandpaper to remove any left-over ridges. Dust well with a dusting brush or a lint-free cloth.




Retracing the Pattern

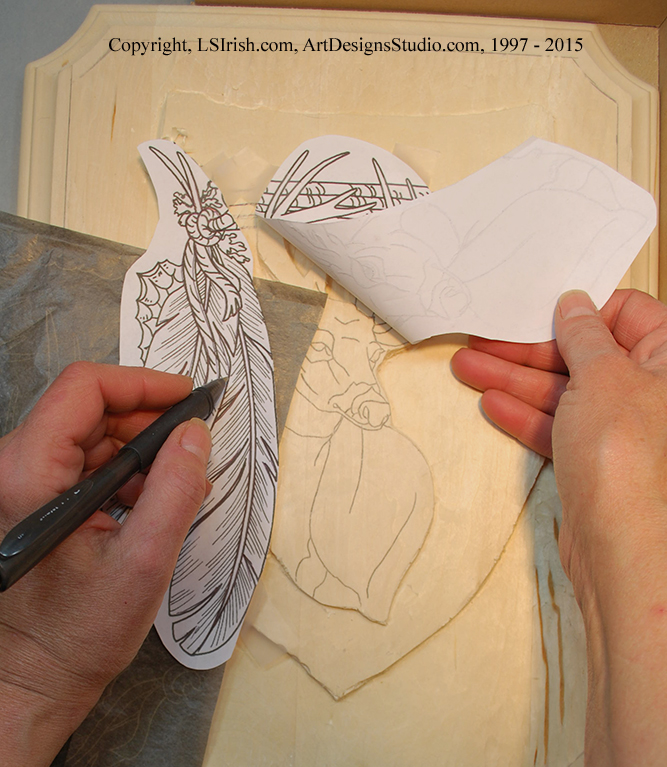

How to trace small areas of a relief wood carving pattern1 Cut the pattern into small sections along the level’s borders. Using tape secure each pattern section over the wood. Using graphite paper and an ink pen trace along the detail lines of the pattern.




Texturing the Arrowhead

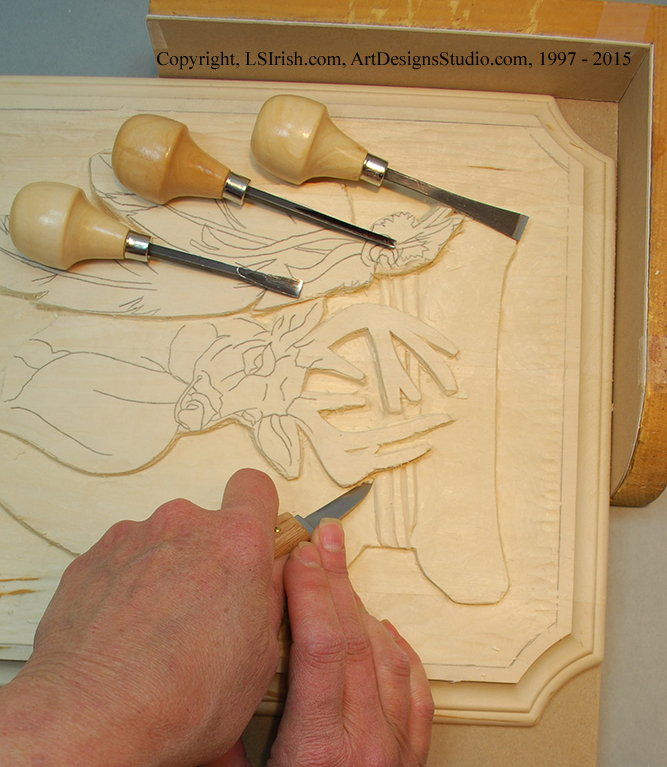

Stop cutting between elements in a relief wood carving pattern1 Through this section we will work to create the round-over curves of each element following the pattern guidelines.

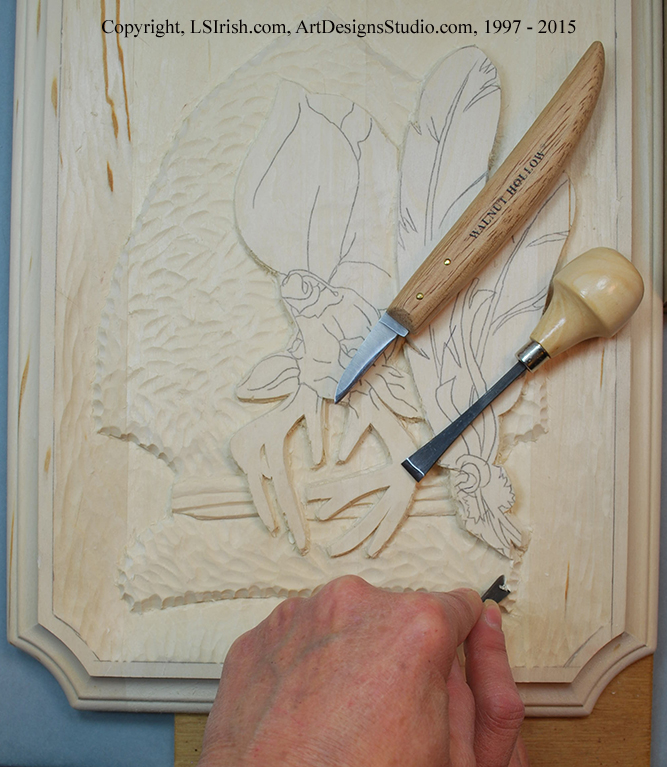

Round gouge texture in a relief wood carving background2 Using the large round gouge make small, short cuts into the arrowhead to create a stone chip texture.

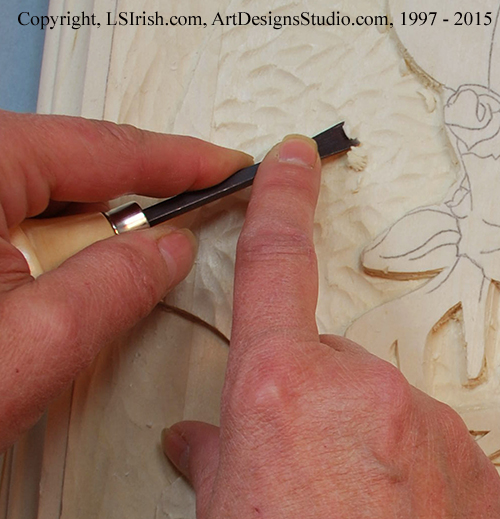

Adding texture to a relief wood carving background3 Hold the large round gouge in an upright position and use a push stroke to cut stone chips along the outer edge of the arrowhead. Use minimum pressure to ensure that you do not deeply set the edge of the round gouge into the background area.
